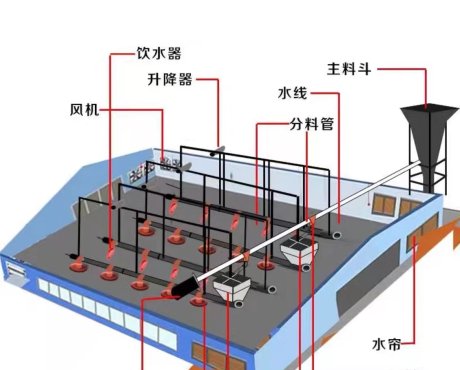

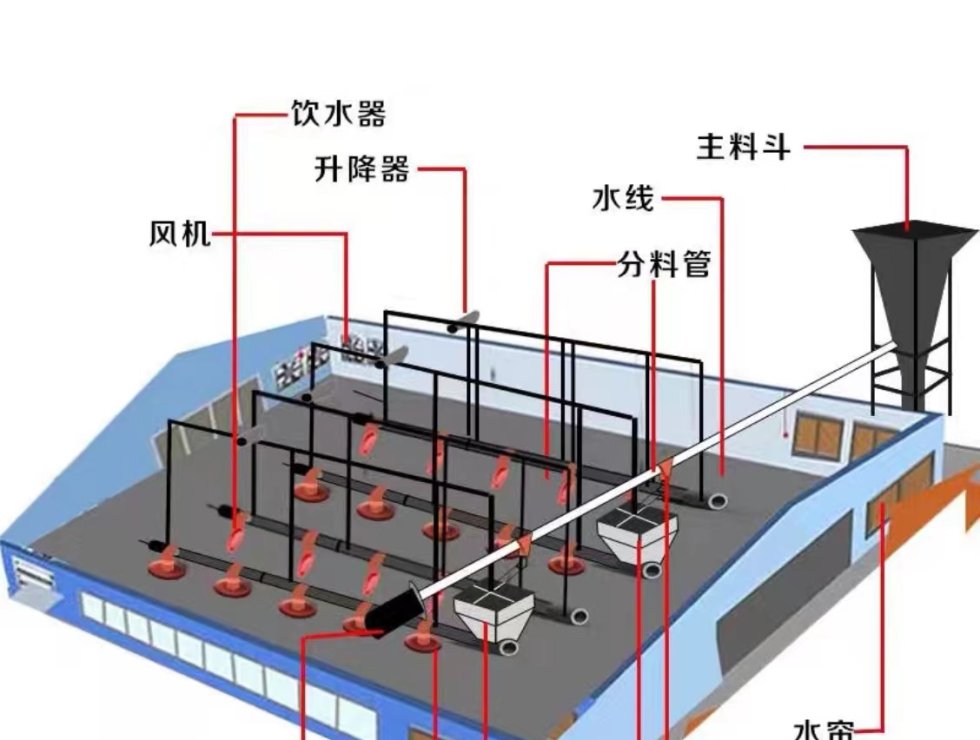

Layout legend of feed line and water line in general farm. The overall length is subject to customer requirements.

Each feed tray can also adjust the amount of feed. The number of feeding trays is determined according to the number of poultry raised by customers, but in general, the spacing between two adjacent feeding trays is 75cm, the shape size of the feeding trays is generally about φ33cm H35cm, the specifications have five grids, eight grids, fourteen grids, sixteen grids, etc., and there are separate feeding trays for breeding chickens. The fixed length of a feed pipe is 3 meters, and four feeding trays are installed. Customers can choose the right feeding line length according to the size of their own breeding site, and you can calculate how many feeding trays are more suitable. In this way, a complete set of various components, can operate normally and can basically meet the feeding needs of the feeding system is completed.

Similarly, a complete set of automatic water feeding system, components include: balance pipe; Voltage regulator; Winch and its base; Various pulleys; Hold card, hook; Square (round) water pipes and their joints; Steel wire rope, spring, and different specifications and quantities of water fountains.

Drinking nipple is divided into ball valve type and conical valve type. Drinking water hanging cup has one hanging cup and separate hanging cup. The number of water fountains is also determined according to breeding requirements, but in general four per meter is installed. The fixed length of a water inlet pipe is 3 meters, that is, there are at least 12 drinking fountains on a water inlet pipe.

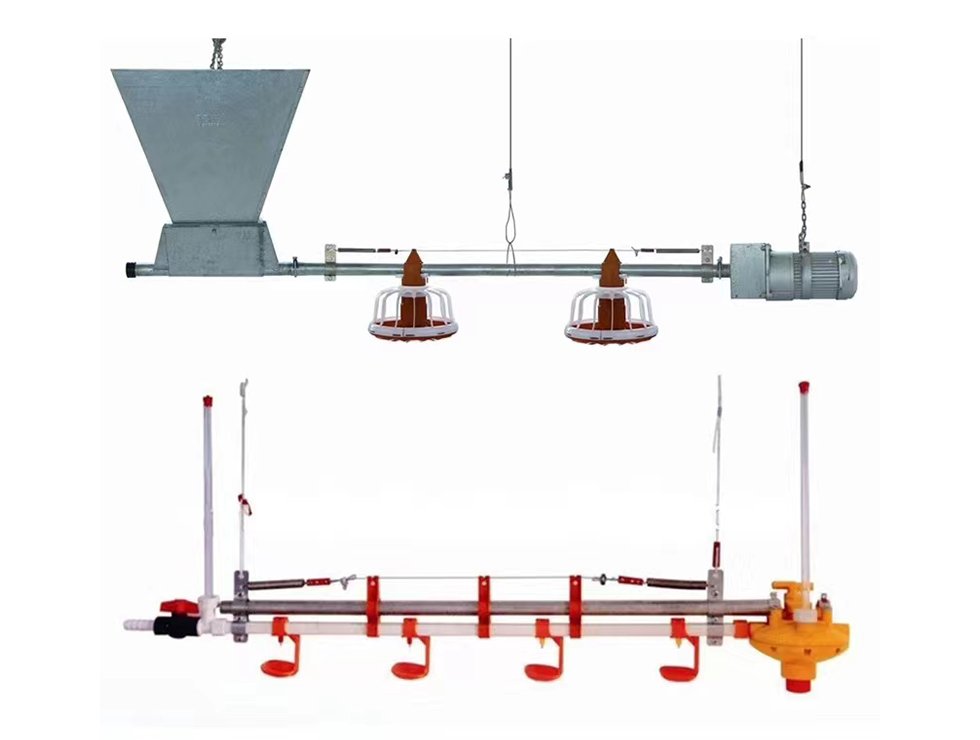

This is the basic configuration of the feed line and water line. Customers can choose different specifications according to their own breeding site and.
